Modern, extra small and powerful 12V DC mini recessed spotlight: This dimmable LED recessed spotlight is made for installation places where there is little space for installation or only accent lighting is to be done. When something needs to be put in the right light - This fixture does it with flying colors and blends in well in any location due to its simple design.
Due to the mounting with clamping springs, the installation in ceilings is very simple. Each spotlight has 17cm input cable (red) and 17cm output cable (black)
SPECIFICATIONS LUMINAIRE // Power: consumption of 1W with 60 lumens of power, equivalent to about 8W compared to incandescent bulb - beam angle: 60 ° - light color: warm white (3000k) - life: about 30,000 hours - DIMMABLE - illuminant NOT EXCHANGEABLE! - CE mark of conformity - IP65 protection class - Material: aluminum
DIMENSIONS LIGHT // Outer dimension: 24x25 mm - Hole size: 20 mm - Frame height/thickness: approx. 2 mm
PRODUCT INFORMATION ""EZDIM" 3 STEP LED DIMMER 12VDC 36W MAX"
Easy Dim with switch: turn off the power supply and turn on again in the time of 2 - 5 seconds. This will make the dimmer change the output from 100% to 60% or from 60% to 30% or from 30% to 100%, PWM dimming.
Suitable for 12VDC dimmable LED lights, such as strip lights, under cabinet lights.
Small and compact size can be easily mounted or hidden.
The dimmer should be installed between LED driver and LED lamp, The LED driver must have constant voltage and 12V DC output. This dimmer is not compatible with constant current LED driver!
The on/off switch can be installed before the LED driver or after the LED driver.

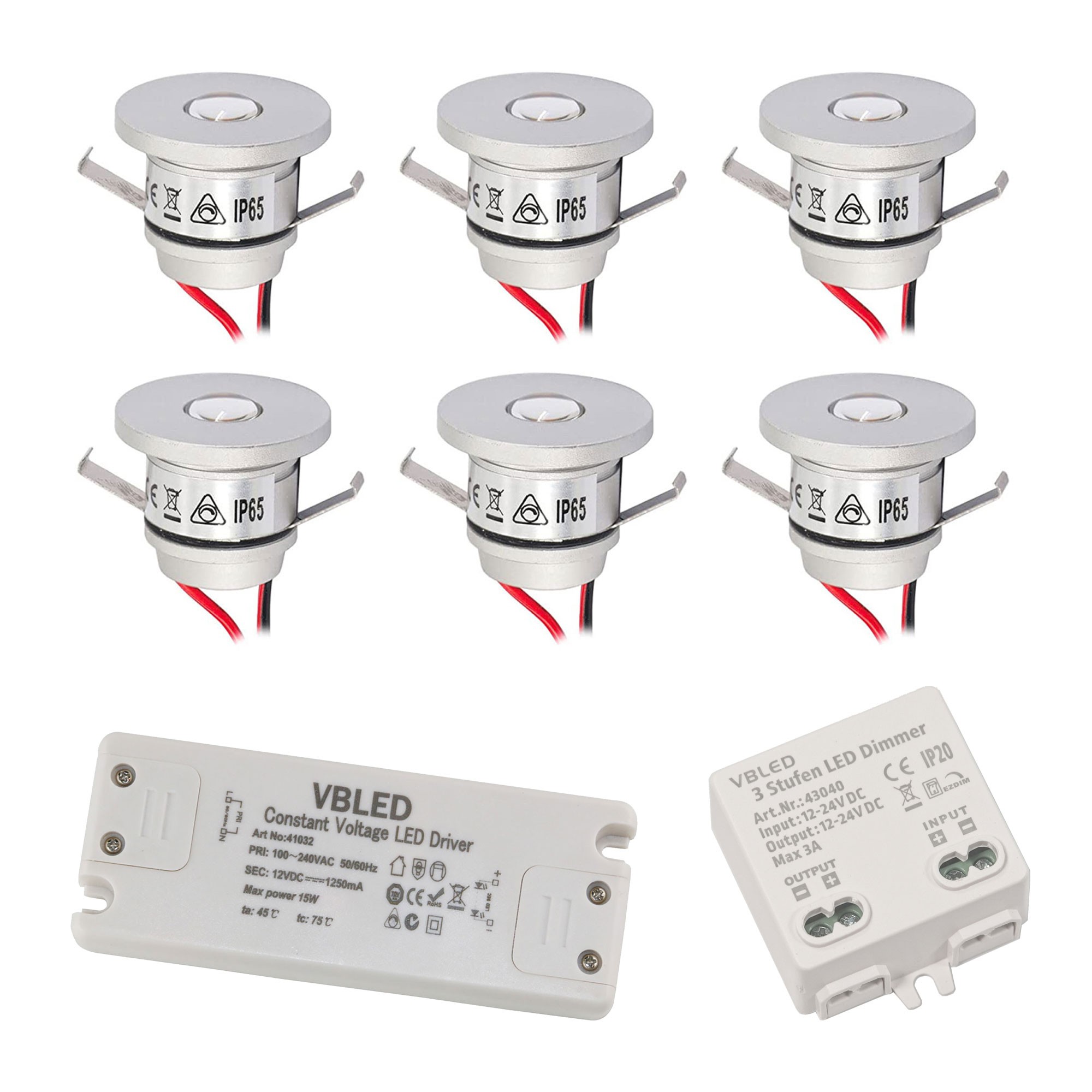

Included in this EZDIM set are: 6x 83036WW 1W Mini Spot, 1x 43040 EZDIM Dimmer, 1x 41032 Power Supply, 1x 44030 2-Way Cable Connector, 6x 44031 T-Cable Connector
Product Details
83036WW-3K6D-KIT
